MQTT

MQTT is available by choosing the mqtt protocol on a WebSocket request.

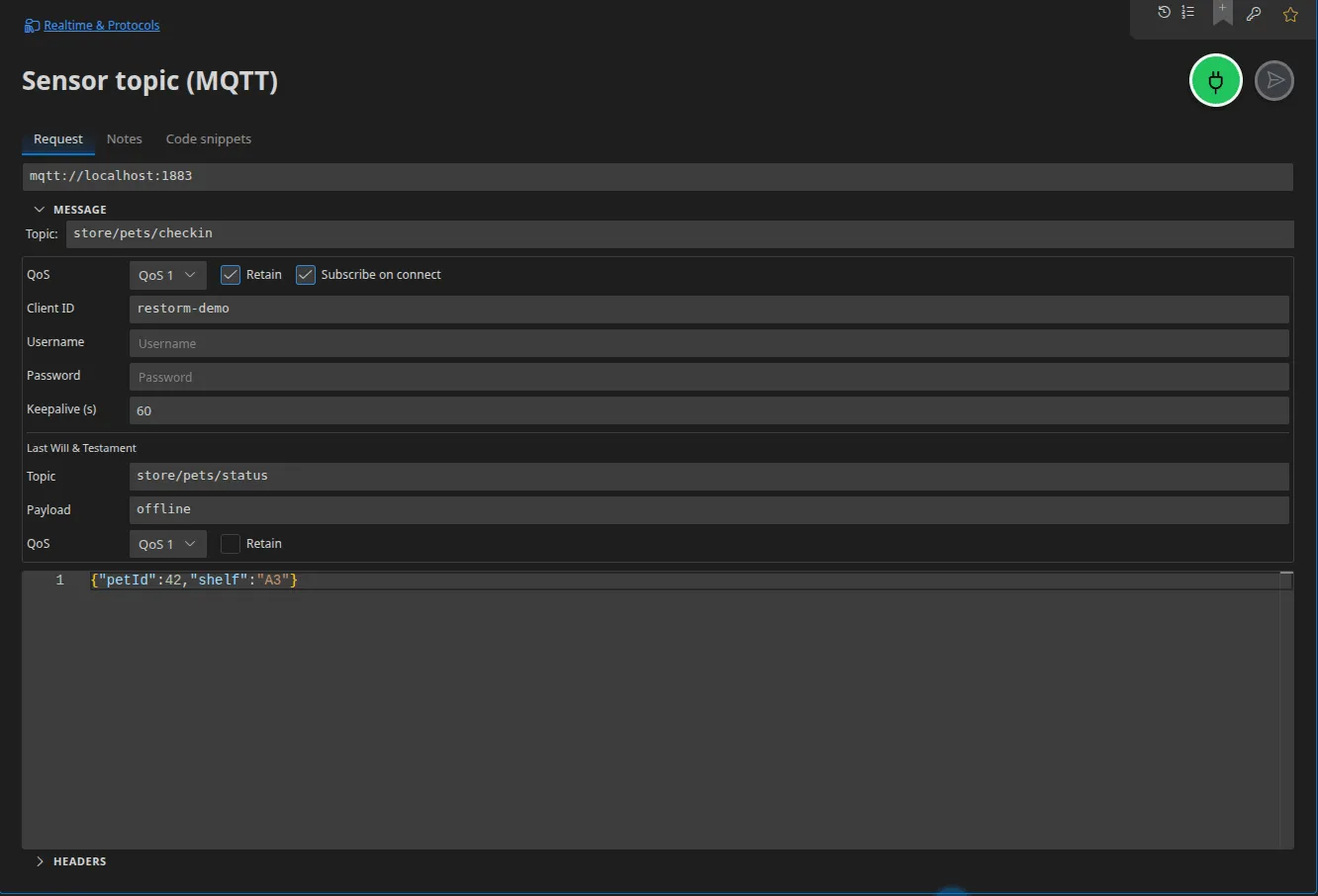

Configuration

Field	Role
URL	The broker’s address (mqtt://, mqtts://, or WebSocket)
Topic	The topic, carried by the Event field
Message	The published payload
QoS	0, 1 or 2 — used both when publishing and when subscribing
Retain	Marks the message as retained by the broker
Client identifier	Resolved by Handlebars; generated automatically if left empty
User / Password	Broker credentials; the password accepts a Secret-typed value
Keepalive	In seconds
Subscribe to topic	Enabled by default: on connecting, Restorm subscribes to the request’s topic

The topic accepts {{variables}} — capteurs/{{site}}/{{capteurId}} is a perfectly valid topic.

Last Will and Testament

Four fields declare the message the broker will publish if your client disappears abruptly: the will’s topic, payload, QoS and retention.

That is exactly what you need in order to test how your system behaves in the face of an unclean disconnect: configure a will, cut the connection, and check the subscriber reacts.

Reconnection

The MQTT client reconnects automatically, with a ceiling of ten attempts.

In a scenario

MQTT connect (which subscribes to the request’s topic and emits one event per message received), MQTT publish (publishes, with the request’s QoS and retention) and MQTT close. See Connections and streams.

Server mode

Restorm can host a local MQTT broker: one broker per port, reachable over raw TCP and through an MQTT-over-WebSocket gateway. See Mocking WebSocket, Socket.IO and MQTT.

Importing from AsyncAPI

An AsyncAPI document whose channels use the mqtt protocol produces MQTT requests directly (one per channel, for publishing and for subscribing), with sample payloads built from the messages’ schema. See Importing AsyncAPI.
