OData

OData is handled as a protocol in its own right, not as HTTP you have to decorate yourself: Restorm knows its system options, its operations and its batch format.

Right-click in the tree ▸ Add ▸ OData request.

Configuration

Field	Role
URL	The service’s endpoint, entity set included
OData version	v2, v3, v4 or v4.01
Operation type	entity-set, function, action or batch
Headers / Parameters	As for an HTTP request

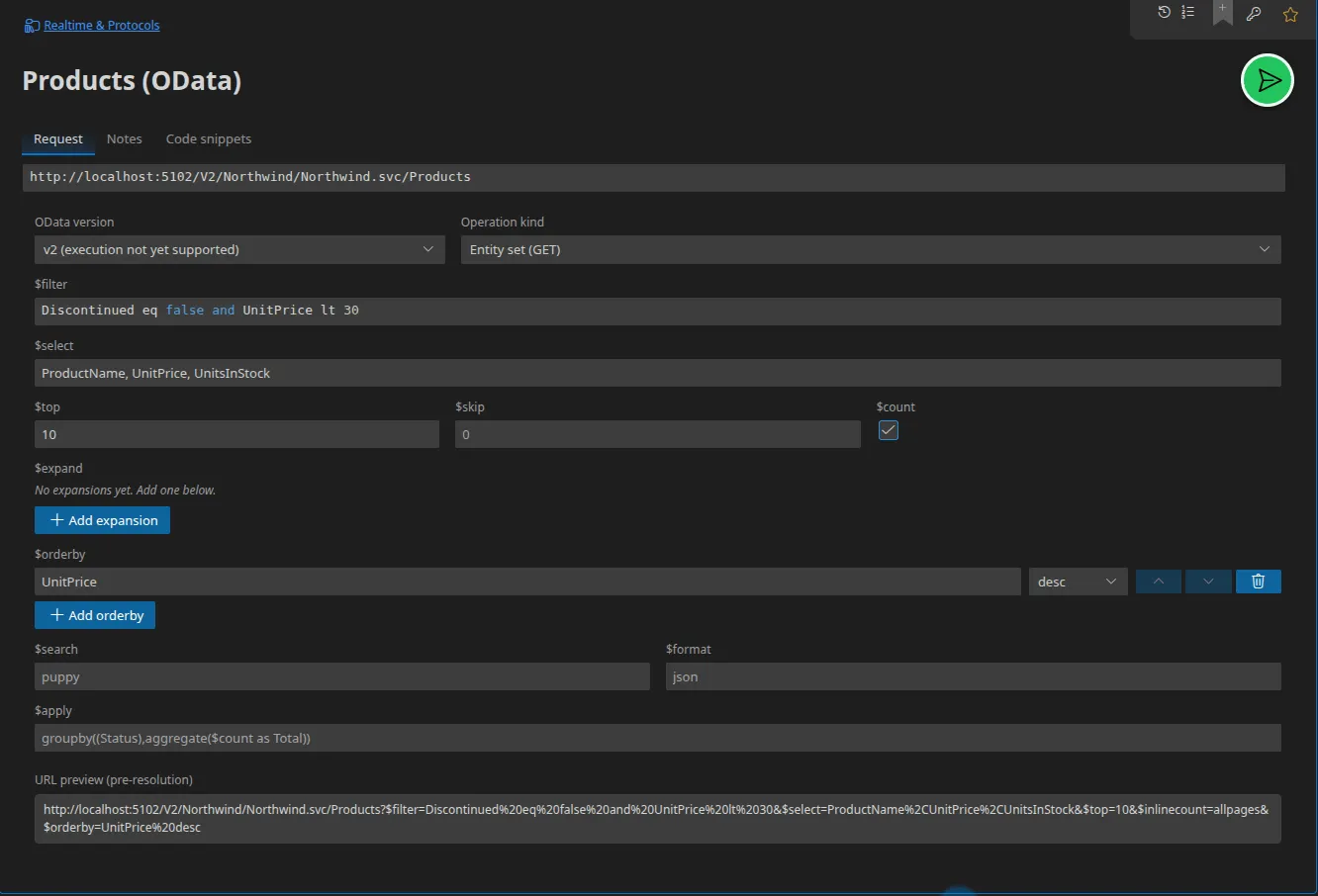

Query options

Each system option has its own field:

$filter · $select · $top · $skip · $count · $expand · $orderby · $search · $format (json, xml, atom) · $apply (aggregation, v4.01).

The $filter field benefits from autocompletion fed by the imported metadata: property names and operators are offered to you.

Functions and actions

For function and action, a list of typed operation parameters is available — name, qualified CSDL type, nullability, binding flag — and, for an action, a dedicated JSON body.

$batch requests

The batch mode carries a list of sub-requests, each with its method, URL, headers, body, and optionally its atomicity group (change set). Two options:

• Format: multipart (the default) or json;
• Allow GETs inside a change set: disabled by default; enabling it raises a warning, because OData does not provide for it.

Importing the metadata

Import a $metadata document or an .edmx file: Restorm creates one folder per entity set with its CRUD requests, plus Actions and Functions folders. Requests arrive pre-filled with the entity type, the properties, the navigation properties and the query options. See Importing OData.

Server mode

Restorm can host a mock OData v4 service: you supply the CSDL metadata document (served as it is) and the data per entity set. System options are applied to the data served. See Mocking an OData service.
