Building a scenario

The editor

The canvas in the centre, the add palette and the inspector around it. Boxes are moved with the mouse, and the view pans and zooms.

Adding a box

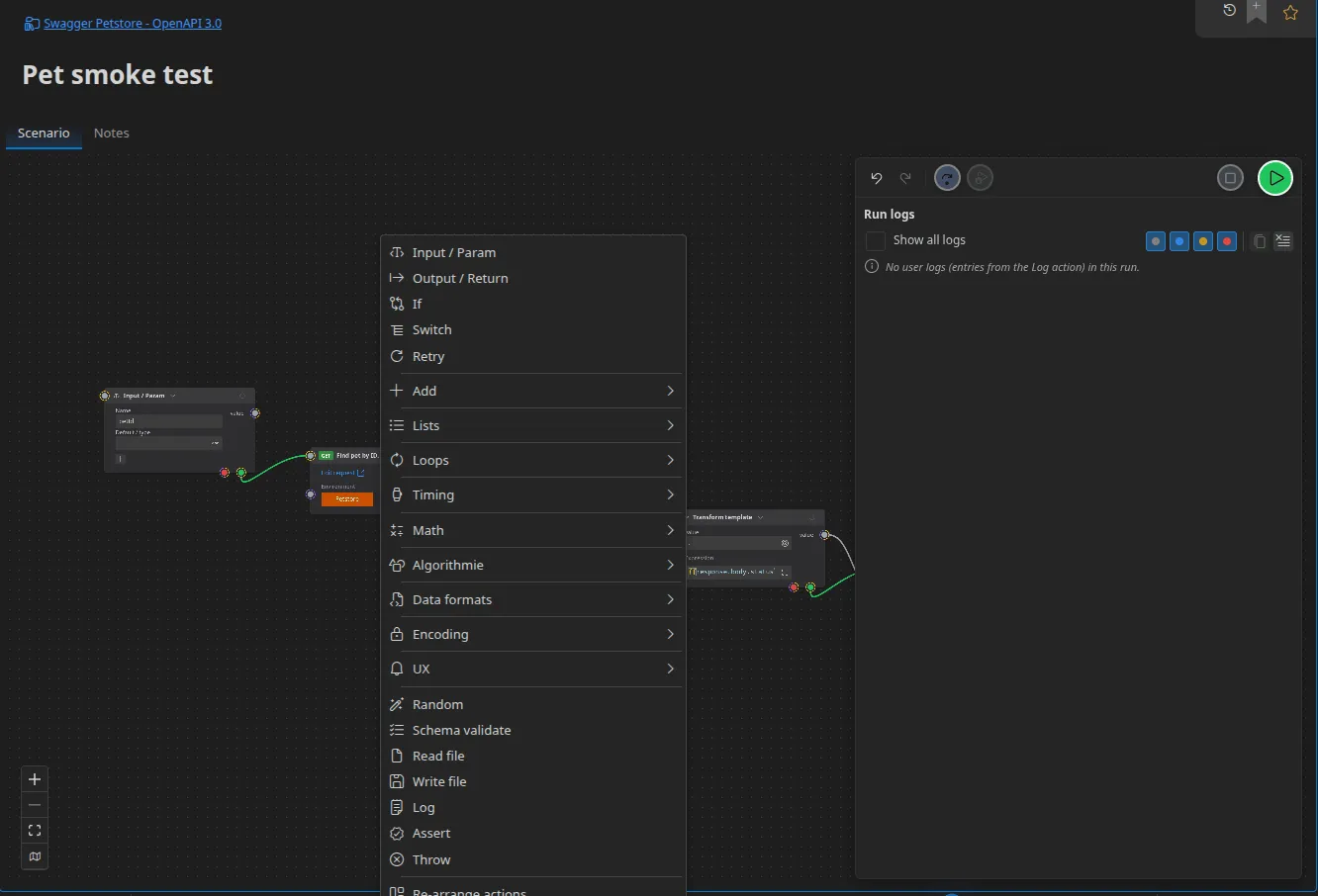

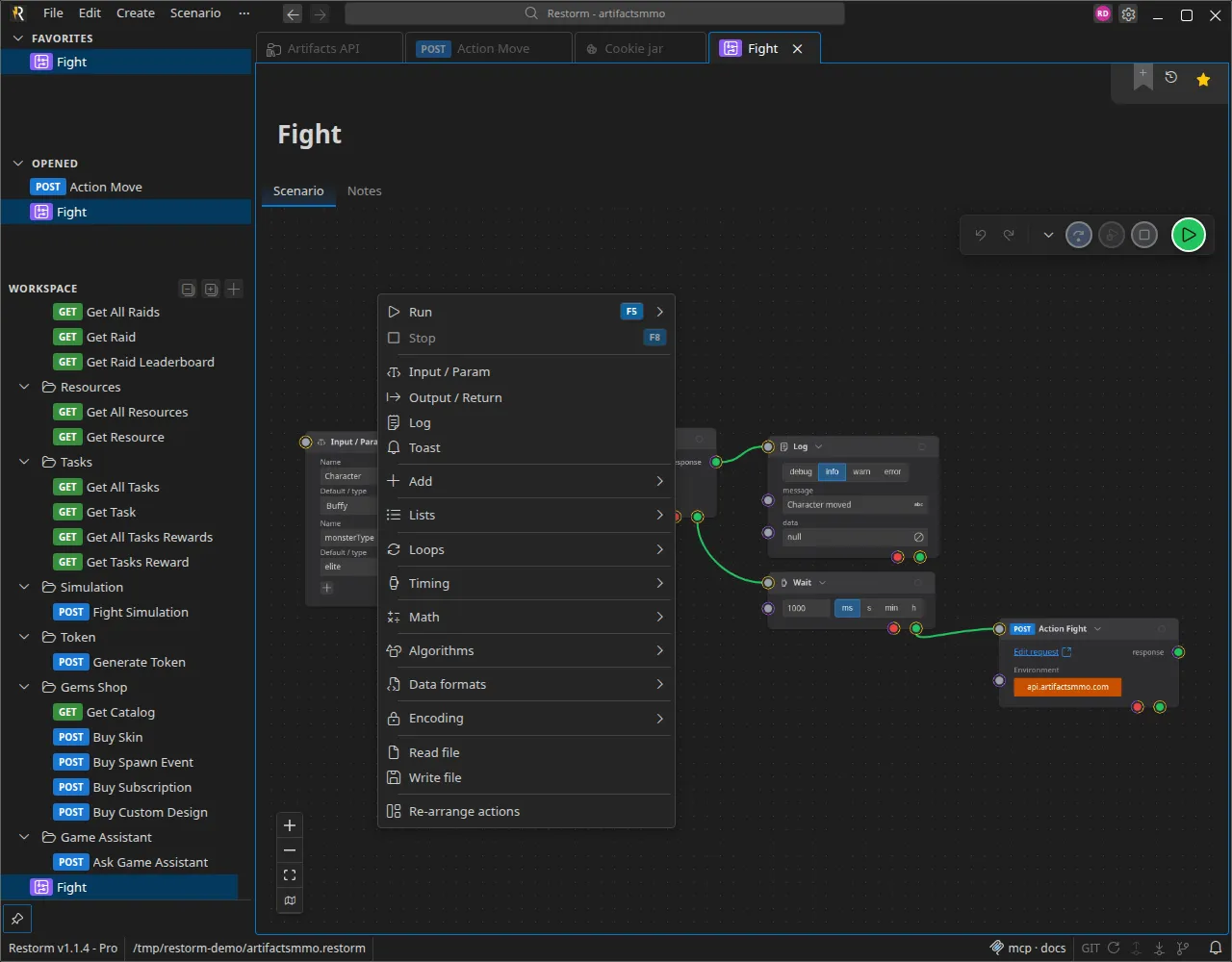

From the palette, organised by category: control, composition (requests and connections), lists, loops, time, maths, algorithmics, data formats, encoding, interface, utilities.

An action bound to a request (HTTP Request, SOAP Request, all the connection actions) asks you to designate the project request it drives.

The scenario ↔ request link

Designating a request in an action creates a strong link: the action references the request by its identifier, not by a copy. What follows from that:

• the request stays shared — changing it (URL, headers, body) changes what every scenario that uses it plays, on their next run;
• the link survives renaming or moving the request within the tree: it rests on neither the name nor the path;
• from the request, the smartbar carries a “Used in scenarios” button — it lists the scenarios that call it and lets you jump to them. That is the reflex to have before modifying a shared request;
• a missing request (deleted, or absent when the project is opened) fails the scenario’s validation: the play button stays blocked and the offending box is flagged — never a silently broken scenario.

To replay the same request without touching its saved version, do not modify it: use the overrides (quick setting, action overrides, link) described in Overriding a request.

Configuring a box

Every box has its own fields, typed directly on the box or in the inspector. The fields accept typed values — string, number, boolean, date, Handlebars expression, variable, custom list, secret… — see Variables and environments.

Ctrl+Space triggers variable and helper autocompletion in the fields that support it.

Wiring

Drag from an output port to an input port.

Two rules worth knowing:

1. An input port accepts only one link — except the in port, which accepts as many as you like and then acts as a barrier.
2. A pure-signal output cannot feed a pure-value input. Everything else is allowed: an output that carries a value also serves as a trigger.

Details: Ports and links.

The link selector

A link can carry a selector: a path applied to the value in transit.

data.items[0].id
body['user-id']
status

This is what saves you inserting a transformation box between every call and its consumer. The selector is set when the link is created or later on; emptying it removes it.

Overriding a request

An action bound to a request can modify it without touching the request itself. Four layers, in this order:

1. the request as it is saved;
2. a quick setting (quick config) designated on the action — this is how you reuse a saved variant of a request directly inside a scenario, without typing it again;
3. the overrides entered on the action;
4. the value arriving through a link on the override port.

That is the clean way to replay the same call with three data sets.

Replaying on every event

A box’s context menu offers “Play on each event received”. When enabled, the option turns every wired input into a non-blocking “or” gate: the box re-triggers on every value received on any port, instead of waiting for all of them to be there.

That is essential for handling a stream (every MQTT message, every SSE event), and it is also what unblocks a completion cycle.

Parameters and outputs

• An Input / Param box declares the scenario’s parameters. They are supplied at launch, on the command line (--param name=value), or asked for at run time in interactive mode.
• An Output / Return box exposes a result to the caller — useful when the scenario is called by another one through the Run scenario action.

Organising

Restorm can tidy a graph automatically (auto-layout); the boxes remain movable by hand afterwards. Ctrl+Z undoes, Ctrl+Shift+Z redoes.

Validating

The play button is blocked as long as validation errors remain: an invalid link, a missing request, an empty mandatory field. The offending boxes are flagged.
