WebSocket

Right-click in the tree ▸ Add ▸ WebSocket request.

Restorm’s WebSocket type covers three closely related protocols, selected by a Protocol field: websocket (raw), socketio and mqtt. This page deals with raw WebSocket.

Configuration

Field	Role
URL	ws:// or wss://
Message	The payload to send
Headers	The opening request’s headers (handshake)

The lifecycle

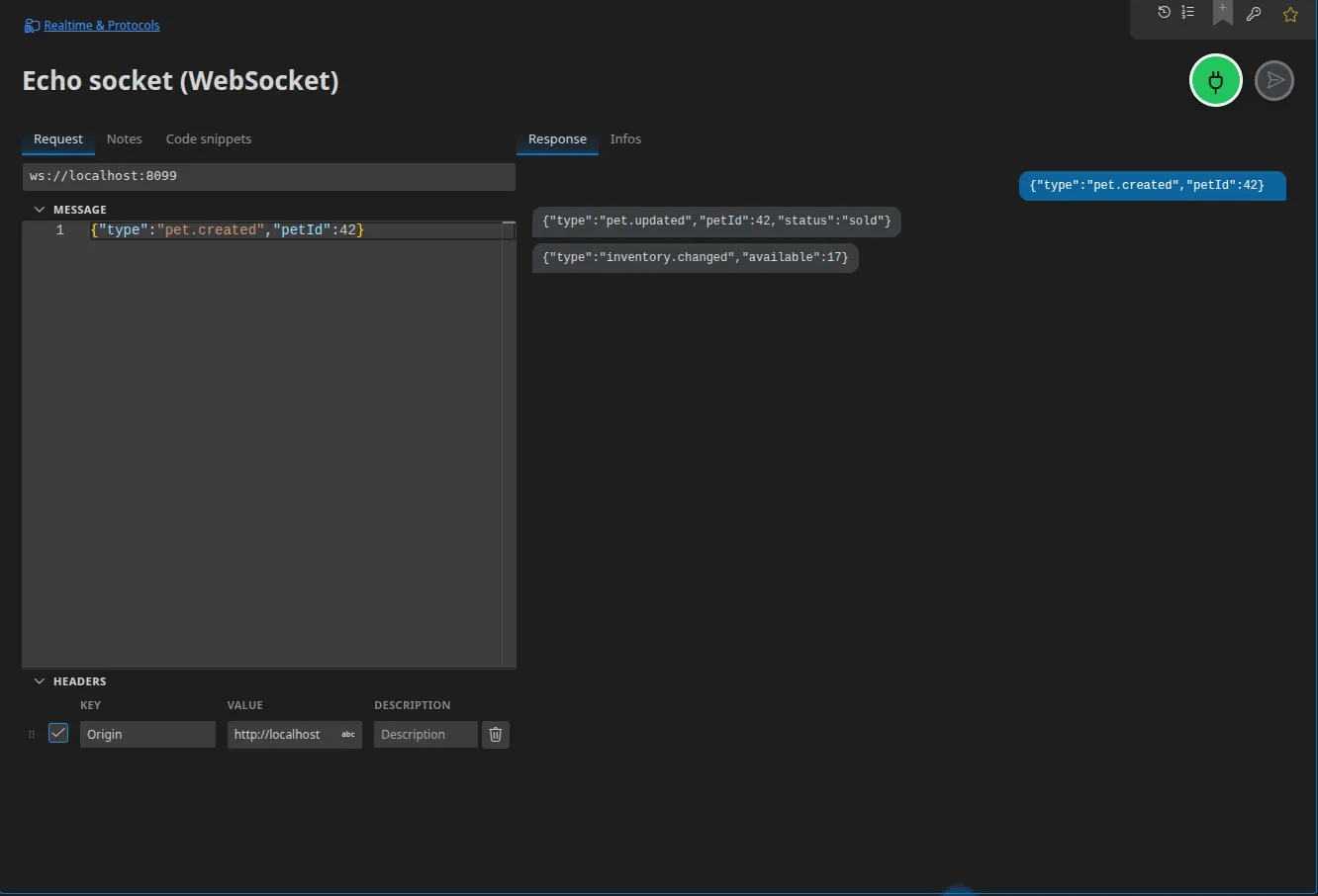

The action button opens the connection; the response panel shows frames as they arrive, in order, timestamped. That same button closes the connection again.

In a scenario

Three actions, to be used together:

• WebSocket connect — opens the connection and gives it a name. It has two outputs: connected (a signal, once) and message (one emission per frame received);
• WebSocket send — sends a payload over the named connection;
• WebSocket close — closes it again.

That split is what lets you write “I connect, I send an order over HTTP, then I check the WebSocket notification arrives” in a single graph. See Connections and streams.

Server mode

Restorm can host a WebSocket server. It shares its socket with the other servers on the same port: an HTTP mock server and a WebSocket server can listen together on :8080 — ordinary requests go to the HTTP routes, upgrade requests to the WebSocket server. See Mocking WebSocket, Socket.IO and MQTT.

Code snippets

Fifteen targets shared with Socket.IO and MQTT: the browser’s WebSocket, ws (Node.js), TypeScript, Socket.IO Client, MQTT.js, Python (websockets, paho-mqtt), Go (gorilla/websocket), C# (ClientWebSocket), Java (java-websocket), Ruby, Rust (tokio-tungstenite), Swift (URLSessionWebSocketTask), Kotlin (OkHttp).
